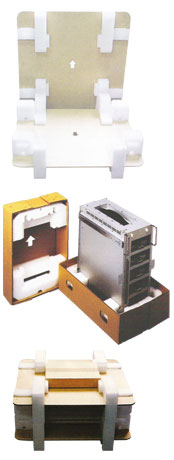

        SUNTEC FOAM is a non-crosslinked, extruded foam made from low-density polyethylene. It is the material of choice for cushioning, surface protection, and thermal insulation in sporting goods, furnishings, and construction, and particularly in packaging and returnable containers for precision instruments, electronic equipment and many other industrial products and components.
Superior Cushioning
SUNTEC FOAM is characterized above all by its superior cushioning properties – a unique combination of optimum support and outstanding impact energy absorption, and a resilience that ensures virtually the same level of protection and cushioning under repeated impact and vibration.

Optimum Flexibility, Elasticity
SUNTEC FOAM provides the right combination of tough, durable flexibility and elasticity under the being and com-pressive loads of assembly and fabrication.

Excellent Thermal Insulation, Low Water Absorption
Because of its low thermal conductivity and minimal water absortion, SUNTEC FOAM is widely employed as a thermal insulator.

Watertight Buoyancy
With its lightweight, watertight closed-cell structure SUNTEC FOAM is the material of choice in many buoyant devices for marine and watersport applications.

Chemical Resistance
SUNTEC FOAM as a foam polyethylene product, is resistant to most chemical and oils.

Easy. Economical Fabrication

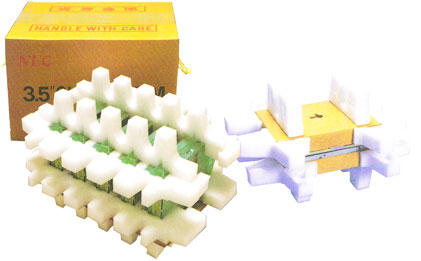

Fabrication and processing of SUNTEC FOAM is fast, clean, and efficient in cutting, slicing and stamping, thermal bonding, and adhesive bonding permitting highly flexible, economical cushion designs for any packaging application.

SUNTEC Foam Physical Properties

Product grade SUNTEC FOAM
Property Test Method <5> <15> <25> <35>
Compressive strength
Vertical direction (psl)
ASTM D 3575 Test B
  at 10%
  at 25%
  at 50%
.
26
27
41
.
16
17
27
.
9
10
19
.
3
5
17
Tensile
strength (psl)
ASTM D 3575
Test E
60 47 37 28
Tensile
elongation (%)
ASTM D 3574
Test E
25 36 60 43
Tear strength
extruded direction (lb/in)
ASTM D 3575
Test D
15 11 9 8
Average density (pcf) ASTM D 3575
Test C
Method B
6.1 4.2 2.3 2.0
Buoyancy (pcf) ASTM D 3575
Test AA
55 58 60 60
Termal conductivity at
75°F mean temp.
(BTU-in/hr•ft2°F)
ASTM D 3575
Test EE
Method B
0.32 0.32 0.32 0.32
